Variable frequency drives: where the energy savings come from
Every second article about variable frequency drives promises dramatic energy savings, and many plants have installed VFDs only to watch the electricity bill shrug. The truth is specific: drives save serious money on centrifugal loads — pumps, fans, blowers — and almost nothing on constant-torque machines. Understanding the difference before you sign the purchase order is the entire game.
The affinity law that pays for the drive
Centrifugal machines follow a simple and generous physics: power falls with the cube of speed. A pump or fan slowed to eighty percent of rated speed delivers eighty percent of the flow but consumes roughly half the power, because 0.8 cubed is about 0.51. This is why throttling a pump with a valve and then replacing the valve with a drive routinely cuts the motor's energy draw by thirty to fifty percent on systems that run partly loaded most of the time.
Constant-torque loads — conveyors, crushers, positive-displacement pumps, extruders — behave differently. Their power falls roughly in proportion to speed, and if the process still needs the same throughput, slowing down is not an option. A drive on a crusher buys you soft starting and control, not an energy revolution.
There is a useful middle group too: machines with partial centrifugal character, like screw compressors with inlet throttling, where savings are real but smaller than the cube law promises. A measurement week sorts them out faster than any textbook.
Where the savings actually come from in practice
The biggest, most reliable wins come from eliminating throttling and recirculation. A cooling water pump sized for peak summer flow and throttled all year is a savings candidate. So is an ID fan with a damper that never opens past sixty percent. The second source is process matching: a compressor house that runs three fixed-speed machines on load-unload cycles can often replace one with a drive-driven trim machine that follows demand smoothly and kills the unload losses.
| Application | Load type | Savings potential |
|---|---|---|
| Centrifugal pump with throttling valve | Variable torque | High, often 30–50% on the motor draw |
| FD/ID fan with damper control | Variable torque | High, similar physics to pumps |
| Trim compressor in a bank | Mostly variable | Moderate to high, kills unload losses |
| Belt conveyor, crusher, extruder | Constant torque | Low for energy; buys control instead |
The audit that should come before the quote
A credible VFD proposal starts with measurement, not a catalogue. Log the motor's actual loading for a representative week — current, and ideally power, at intervals short enough to see the duty cycle. Map how flow or pressure is currently controlled and how much of the year the system runs below peak. Only then does the cube law tell you the honest savings. A vendor who quotes savings without seeing your load profile is quoting his commission, not your physics.
- Measure real motor loading for at least a week, including off-peak days.
- Identify the existing control method: valve, damper, bypass, on-off cycling.
- Check the motor: older motors may need derating or insulated bearings on a drive.
- Price the harmonics and cable work, not just the drive module.
The costs nobody puts in the headline
Payback arithmetic deserves one honest line. A 75 kW fan drive replacing a damper that saves, say, 25 kW on average across 6,000 running hours a year returns roughly 150 MWh annually; at typical industrial tariffs that pays back a standard installation in about two years. The same money spent on a conveyor that never needed throttling control pays back never. The load type decides the business case before the brand does.

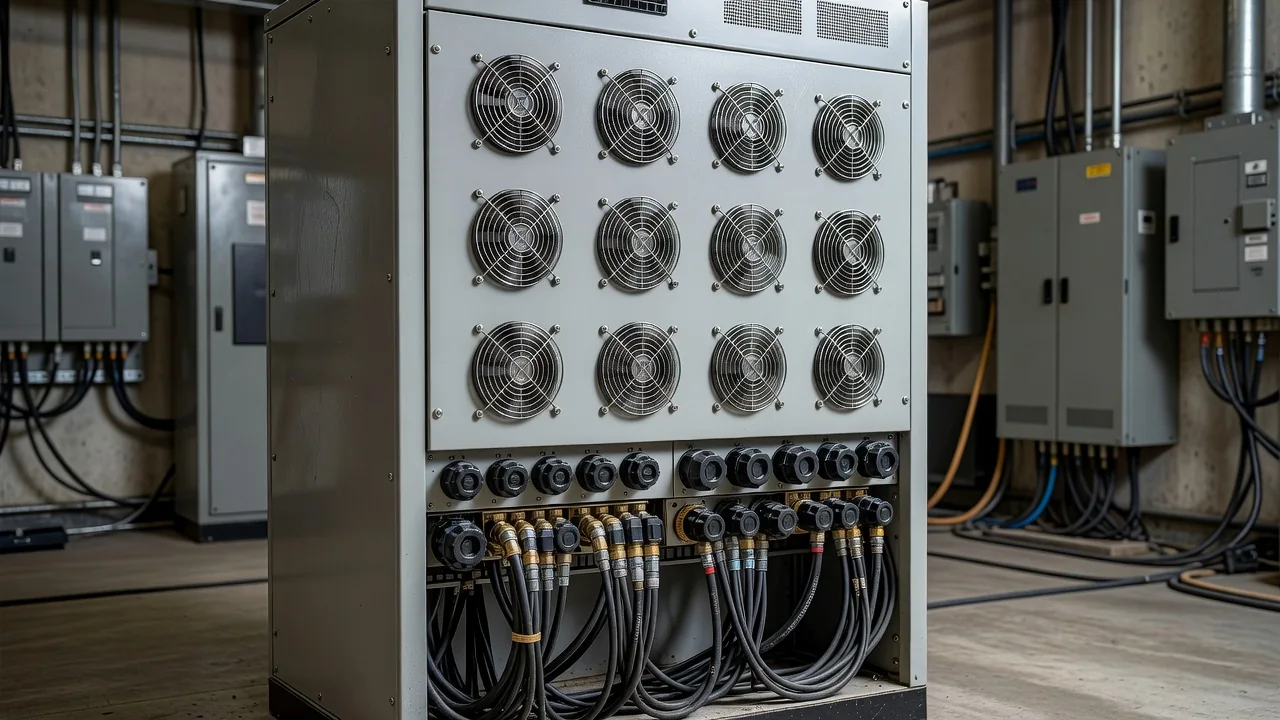

A drive installation costs more than the drive. Long cable runs between drive and motor can need output filters; reflected wave voltages punish old motor insulation; harmonics on the supply side may require line reactors or an active front end; and the control room wants signals wired in. On medium-voltage drives there is also the cooling question and the bypass philosophy — a drive without a bypass contactor is a single point of failure on a critical fan.
Risks and red flags in VFD projects
The classic failure is the savings guarantee calculated at full speed difference that the process never allows — the fan that cannot actually slow down at night because static pressure requirements stay constant. The second is bearing currents on larger motors eating the bearings within a year; the fix is an insulated bearing or shaft grounding ring, cheap at order time and expensive as a retrofit. The third is skipping the bypass on a critical duty: when the drive trips, and one day it will, the process should not stop with it.
A drive is a tool with a favourite job. Put it on the right load and it pays for itself; put it on the wrong one and you have bought an expensive soft starter.
